Collision sensors
QuickSTOP collision sensors are at work on just about every type of robotic application in the world – proof of their value. With dynamically variable trip points and permanent repeatability, they're uniquely designed to help protect your investment in automation equipment and resources.
See how our collision sensors have worked to solve our customers' more specialized application challenges – in assembly, dispensing, material handling and welding.

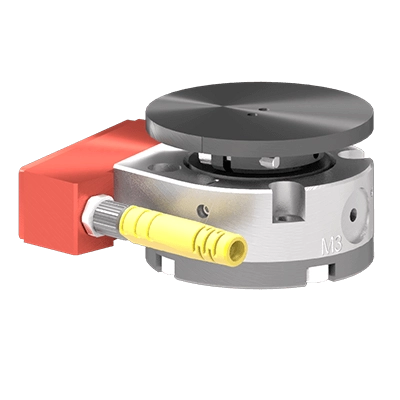

QS-7small payload
Collision detector QS-7: Protect your equipment with maximum precision
With moments trip point from 0.3 to 30 Nm, small payload collision sensors will be the most appropriate models for your applications such as pick and place or dispensing.
0.11kg
1.38mm
40.00 mm
0.31 - 1.5 Nm

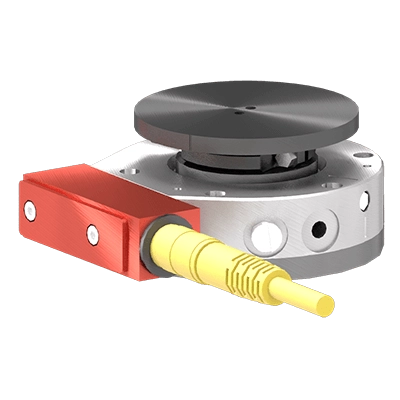

QS-25small payload
Collision detector QS-25: Industrial safety and enhanced reliability
With moments trip points from 0.3 to 30 Nm, small payload collision sensors will be the most appropriate models for your applications such as pick and place or dispensing.
0.26kg
3.40mm
63.50 mm
1.0 - 6.4 Nm

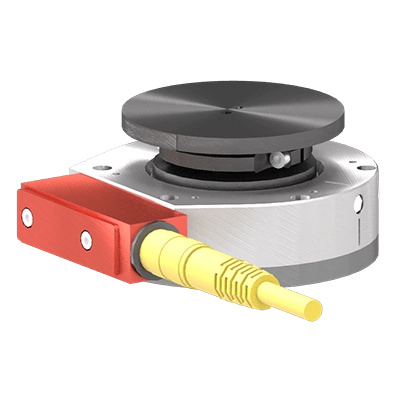

QS-50small payload
Collision detector QS-50: A robust solution for your sensitive machinery
With moments trip point from 0.3 to 30 Nm, small payload collision sensors will be the most appropriate models for your applications such as pick and place or dispensing.
0.29kg
4.30mm
71.00 mm
2.6 - 11.8 Nm

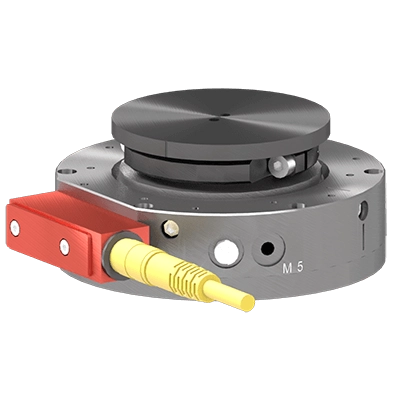

QS-200medium payload
Collision detector QS-200: Protect your equipment in demanding environments
With moments trip point from 7.5 to 290 Nm, medium payload collision sensors will be the most appropriate models for your applications such as cutting or gripping.
0.68kg
5.20mm
97.00 mm
5.9 - 32.4 Nm

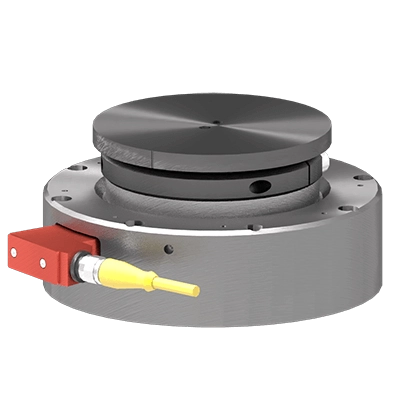

QS-800medium payload
Collision sensor QS-800: A reliable solution for complex industrial environments
With moments trip point from 7.5 to 290 Nm, medium payload collision sensors will be the most appropriate models for your applications such as cutting or gripping.
3.70kg
9.30mm
167.00 mm
36 - 158 Nm

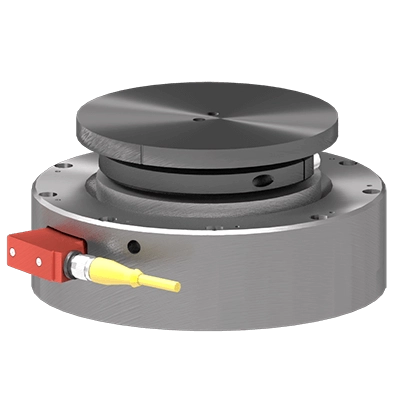

QS-1500medium payload
Detector QS-1500: Optimize the safety of your strategic equipment
With moments trip point from 7.5 to 290 Nm, medium payload collision sensors will be the most appropriate models for your applications such as cutting or gripping.
5.50kg
10.80mm
193.00 mm
82 - 291 Nm
QS-3000heavy payload
Collision sensor QS-3000: Performance and robustness for your technical applications
With moments trip point from 150 to 2300 Nm, heavy payload collision sensors will be the most appropriate models for your applications such as handling of larger and heavier items.
12.20kg
14.30mm
260.00 mm
105 - 414 Nm

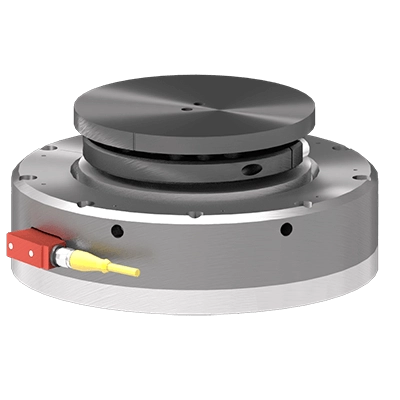

QS-4500heavy payload
Detector QS-4500: Advanced technology for maximum protection
With moments trip point from 150 to 2300 Nm, heavy payload collision sensors will be the most appropriate models for your applications such as handling of larger and heavier items.
12.80kg
10.68mm
260.00 mm
220 - 614 Nm

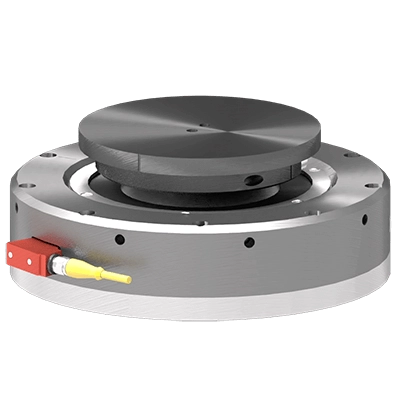

QS-7500heavy payload
Sensor QS-7500: The ideal solution for machines in extreme conditions
With moments trip point from 150 to 2300 Nm, heavy payload collision sensors will be the most appropriate models for your applications such as handling of larger and heavier items.
16.80kg
12.68mm
288.00 mm
472 - 1049 Nm

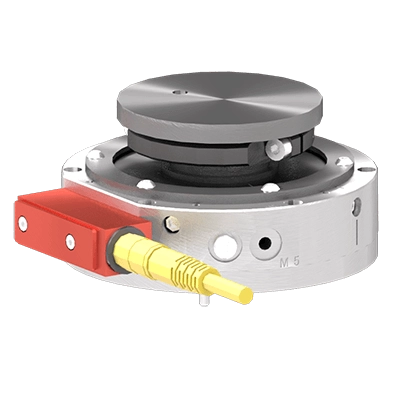

QS-AWarc laser plasma
Collision detector QS-AW: Protect your equipment and boost productivity. Unique design for all industries.
Arc laser plasma collision sensors have been uniquely designed for your harsh applications such as welding or laser cutting.
0.75kg
5.20mm
mm
361 - 3243 Nm

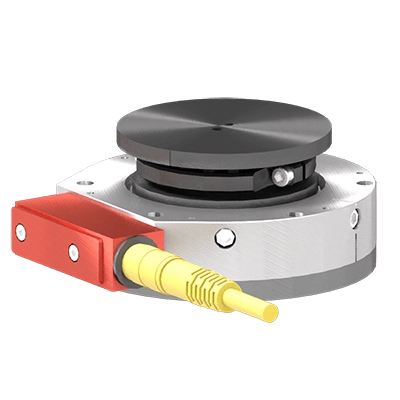

QS-100small payload
Collision detector QS-100: The ideal robustness for your complex operations
With moments trip point from 0.3 to 30 Nm, small payload collision sensors will be the most appropriate models for your applications such as pick and place or dispensing.
0.45kg
4.50mm
83.00 mm
4.1 - 20.3 Nm

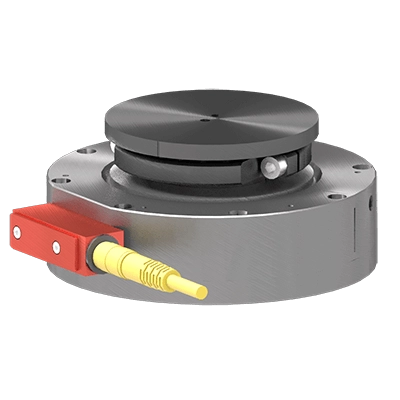

QS-400medium payload
Collision sensor QS-400: Provide precise protection for your sensitive equipment
With moments trip point from 7.5 to 290 Nm, medium payload collision sensors will be the most appropriate models for your applications such as cutting or gripping.
